Booster
Not applicable
Deck
1 stainless steel 304 wire mesh
Inner tube
PTFE
Covalca

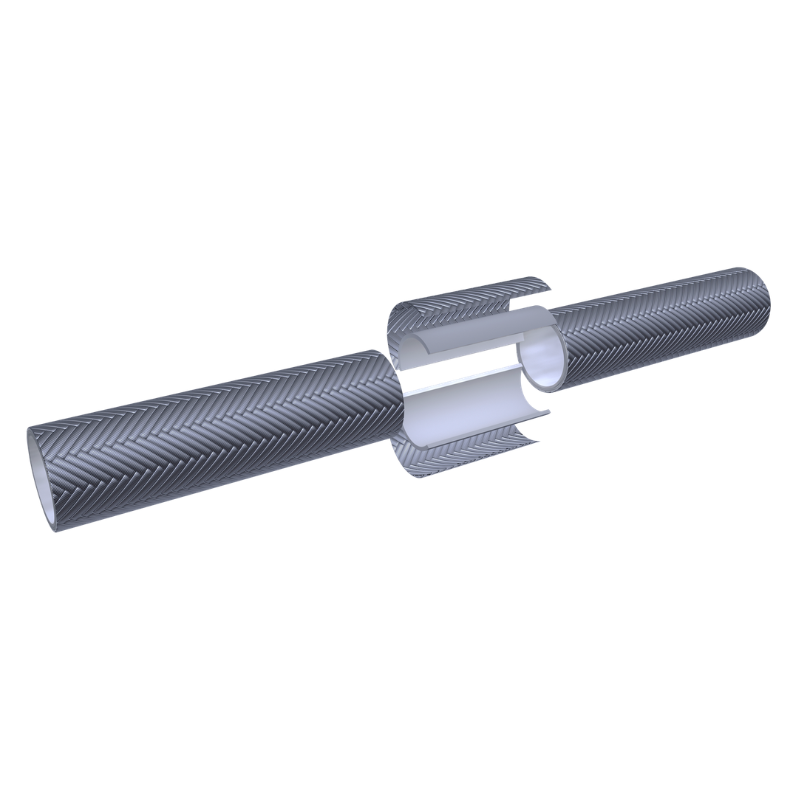

H0114 PTFE Hose Smooth Inner Tube
The H0114 is an SAE 100R14 hose made with an inner tube of PTFE (Teflon), designed for applications where high chemical resistance, excellent performance against extreme temperatures and maximum reliability in demanding industrial conditions are required.
Its construction with 304 stainless steel mesh provides excellent pressure resistance, structural stability and protection against severe environmental conditions.
The PTFE inner tube offers high chemical compatibility and clean flow, making it an ideal solution for applications with hydraulic fluids, chemicals, steam, oxygen, thermofluids, and cryogenic products.

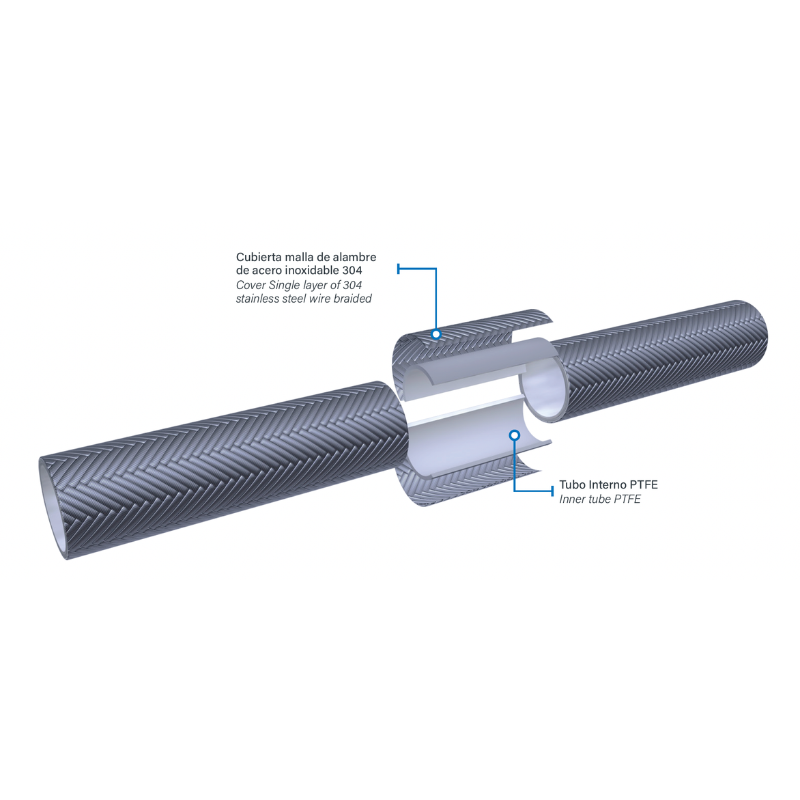

CONSTRUCTION:
- Inner Tube: PTFE
- Cover: 1 stainless steel 304 wire mesh
APPLICATION:
- Hydraulic fluids and petroleum-based oils
- Chemicals, steam, oxygen, thermofluids and cryogenic products
- Temperature Range: -70°C to +260°C
CONNECTIONS:
- FT Series
MEASURES:
- 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1 1/4"
SKU H0114
Product Details
Each Covalca hose is designed to deliver reliable performance in demanding hydraulic applications. Below you will find the technical specifications, operating ranges, and recommended applications to ensure you select the right hose for your needs.
Code
H0114
Available diameters
From 3/16" to 1 1/4"
Temperature range
-70°C to +260°C
Working pressure
Up to 3480 PSI
Certifications
SAE 100R14
Connections
FT Series
Applications
Chemicals, Hot water and steam, Oxygen, Thermofluids, and Cryogenic products
Sectors
Chemical and Energetic
